Tripod Turnstile Gate
Created with Pixso. 304 SUS Hairline 400 Semi-Automatic Tripod Turnstile Gate with Security Access Control System RFID

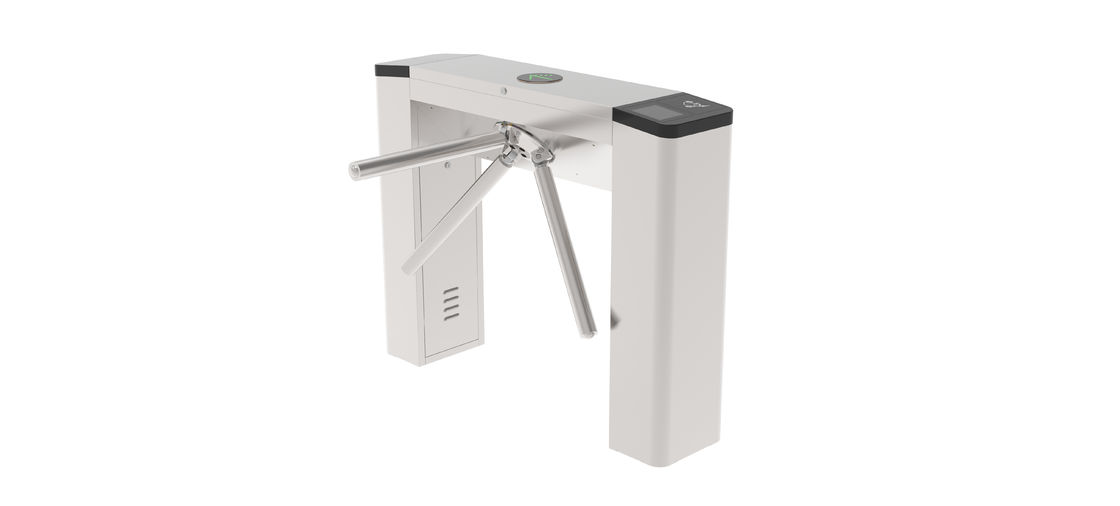

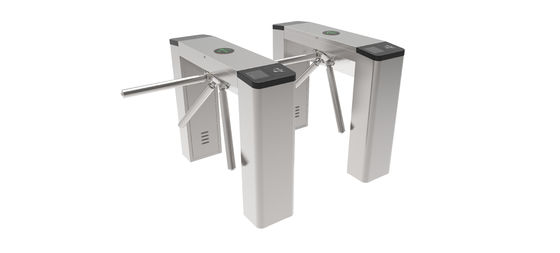

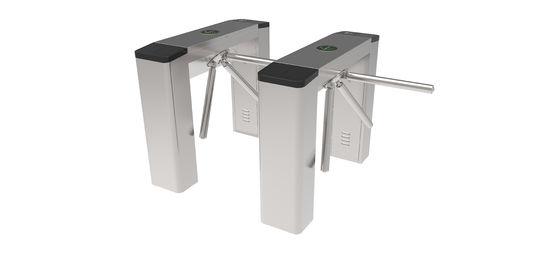

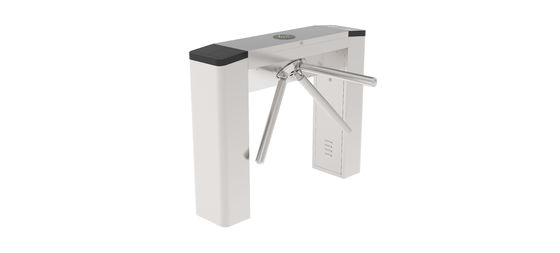

304 SUS Hairline 400 Semi-Automatic Tripod Turnstile Gate with Security Access Control System RFID

Brand Name: Turboo Gate Automation
Model Number: Y148
MOQ: 1pc
Price: Negotiation
Delivery Time: 1 week
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Size:
1200x280x980mm
Pass Width:
550mm
Material:
Topcover 1.2mm / Body 1.0mm 304 SUS Hairline #400
Input Voltage:
100-240V
Working Voltage:
24V
Pass Rate:
30-35 Persons/minute
Temperature:
-25~+70℃
Operating Time:
0.2 Seconds
Net Weight:
45KG
Packaging Details:
Wooden Case Package
Supply Ability:
1000 units per month
Highlight:

304 SUS Tripod Turnstile Gate

,

Hairline 400 Tripod Turnstile Gate

,

Tripod Turnstile Gate with RFID

Product Description
Control de Acceso Semi - Automatic Tripod Turnstile Gate - Integrated with Security Access Control Gate System - RFID

Product Description

Y148 is a dual-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes Y148 highly durable. Y148 is also surprisingly compact and designed to operate in small workspaces. Y148 tripod arms are normally held in a locked position, thus denying access to the secured side. Upon Y148’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its tripod arms unlock, thus allowing users passage to the secured side. Option for built-in REX button allows users to conveniently exit the secured side without needing to use their access card or fingerprint.


Features and Benefits.



• Use of RFID IC cards, ID cards, Barcode or magnet-ic cards as automatic identification system and achieve access attendance, fees or function.
• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.



Projection Case FYI:

304 SUS Hairline 400 Semi-Automatic Tripod Turnstile Gate with Security Access Control System RFID 0

304 SUS Hairline 400 Semi-Automatic Tripod Turnstile Gate with Security Access Control System RFID 1
