| Brand Name: | Turboo |
| Model Number: | LA3217 |
| MOQ: | 2 PC |
| Price: | Bargain |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |

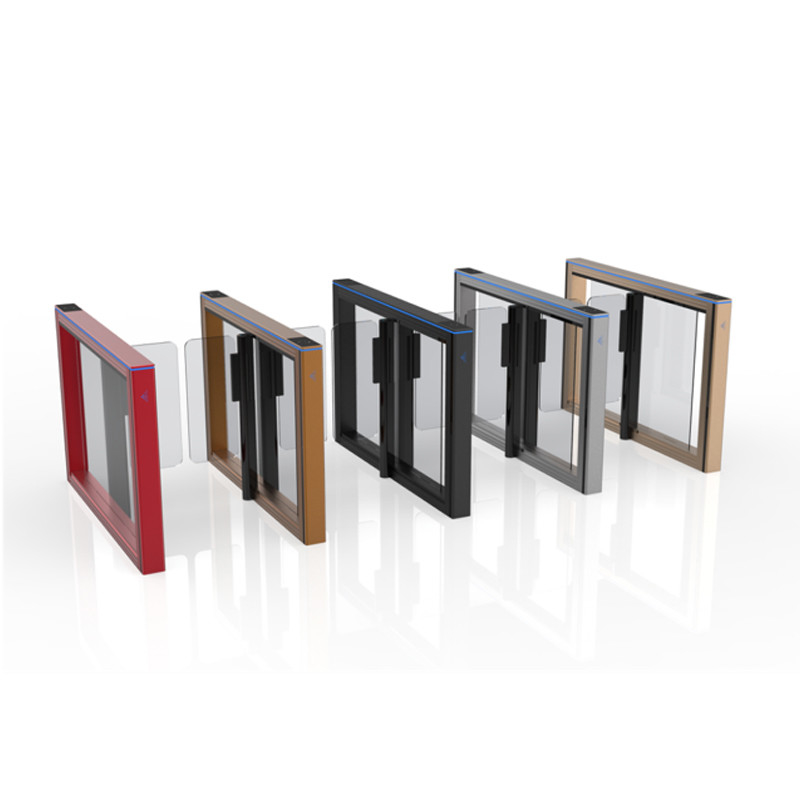

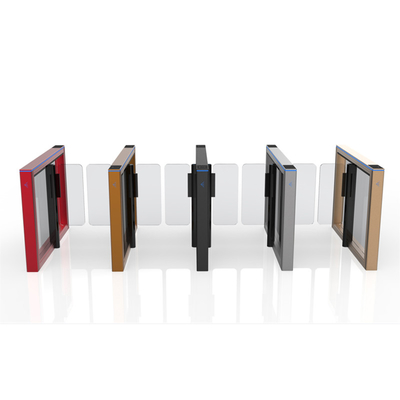

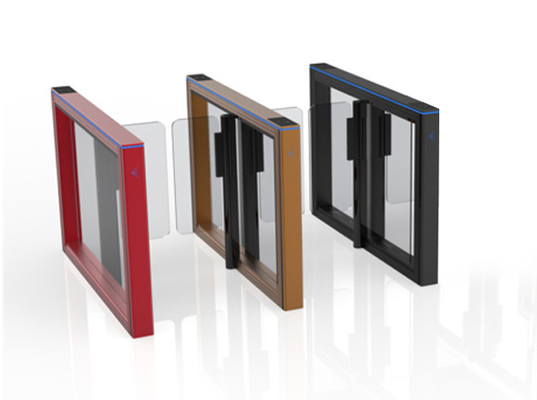

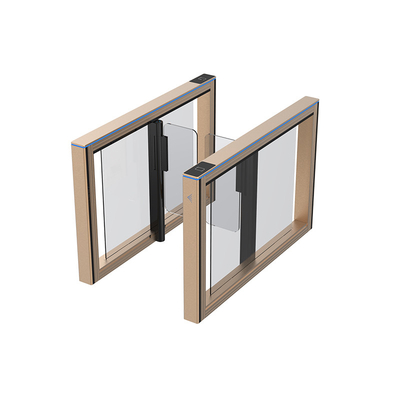

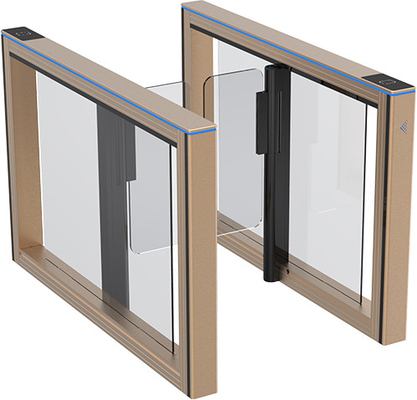

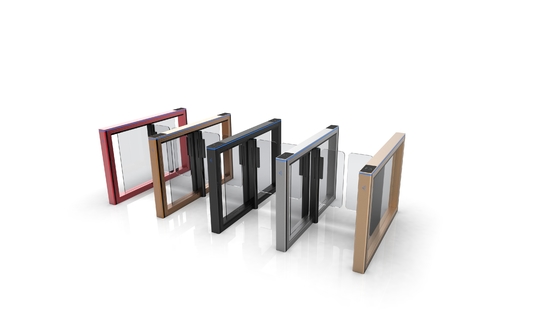

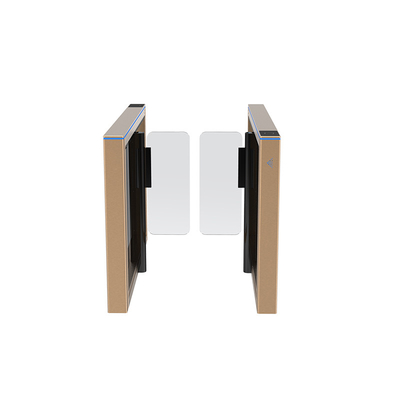

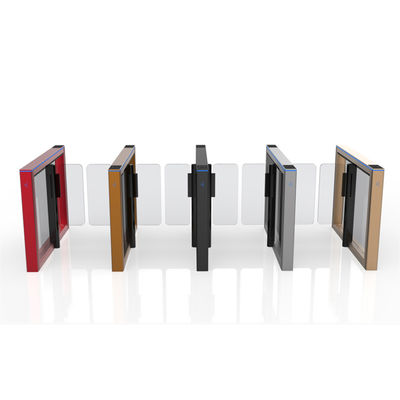

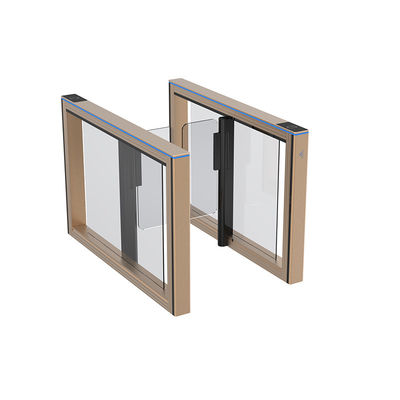

Slim Durable Office Aluminum Alloy Snap-joint Security Gate Protection With Acrylic / Tempered Glass Arm
Parameter of LA3217 swing gate
| Size(L*W*H) | 1500*110*990mm |
| Fuselage material | 3.0mm aluminum alloy |
| Diaphragm material |
8mm clear acrylic |
| Baffle material | 10mm clear acrylic |
| Pass width | 600-900mm |
| Baffle interception height | 900mm |
|
Height of baffle from ground |
340mm |
|
Movement |
Standard quick-pass movement |
| Power supply | 24V 500W |
| Input voltage | AC100V~240V,50/60HZ |
| Drive motor | Brushless servo motor40:1 100W |
| Pass rate | Open 50 people/min; Usually closed 35 people/min |
| Speed of opening and closing |
Open 50 people/min; Usually closed 35 people/min |
| Sensor pairs | 8 pairs |
| Clutch size | 80mm outer diameter |
| Pilot lamp | RGB light strip |
1. Bi-directional access information monitored by electronic microprocessor,·Adjustable opening and closing intervals, configured via electronic card.
2. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
3. Our power supply is the best brand from Taiwan “Mingwei” or “Fujia”.
4. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
6. Our LED indicator imported from American Bridgelux and Taiwan Epistar led chip.
