Blue Acrylic SUS304 Stainless Security Flap Barrier Gate RFID IC ID CARD Access Control System

name

Blue Acrylic SUS304 Stainless Security Flap Barrier Gate RFID IC ID CARD Access Control System

Brand Name:	Turboo
Model Number:	X205
MOQ:	1 PC
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, ISO9001

Size:

1200X280X980

Input:

100~240

Temperature:

-25~+75

Transit Time:

35 Persons/min

Packaging Details:

Wooden case package

Supply Ability:

1000 units per month

Highlight:

IC ID CARD Flap Barrier Gate

,

SUS304 Stainless Flap Barrier Gate

,

RFID CARD Flap Barrier Gate

Product Description

RFID IC ID CARD Access Control Systerm Blue Acrylic SUS304 Stainless Security Flap Barrier Gate

Description Of Security Barrier Gate

Technical Data	Units	1
Passage width	mm	550
Throughput rate	p/m	35
Power supply	V(ac)	100-240
Operational voltage	V(dc)	24
Max power consumption	w	35
Frequency	hz	50-60
prectection level	ip	44
Working temperature	degree	-25 to +70
Dimension excluding bars	mm	1200X280X980
Net weight including bars	Kg	85

Features and Benefits

1,Reasonable and reliable design, low noise, smooth operation and long service life；
2,With function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
3,With functions of anti-tail, anti-reverse pass and so on;
4,Card can be set "with memory" or "without memory" functions;
5,With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
6,With infrared anti-clip function (anti-clip when gate is open or running);
7,Compatible with IC, ID card, scanning and face recognition,etc.
8,Two modes of operation are available: open or closed.

9,Various working modes are available, including two-way card reading and one-way card reading,etc.

Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer

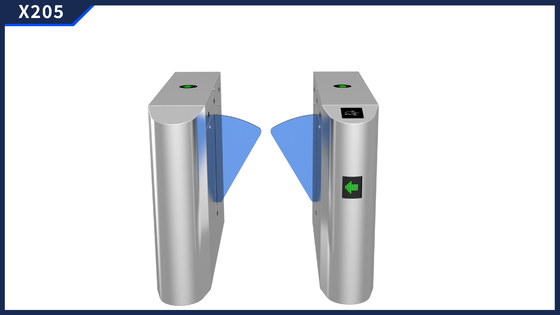

Product details

Blue Acrylic SUS304 Stainless Security Flap Barrier Gate RFID IC ID CARD Access Control System 0

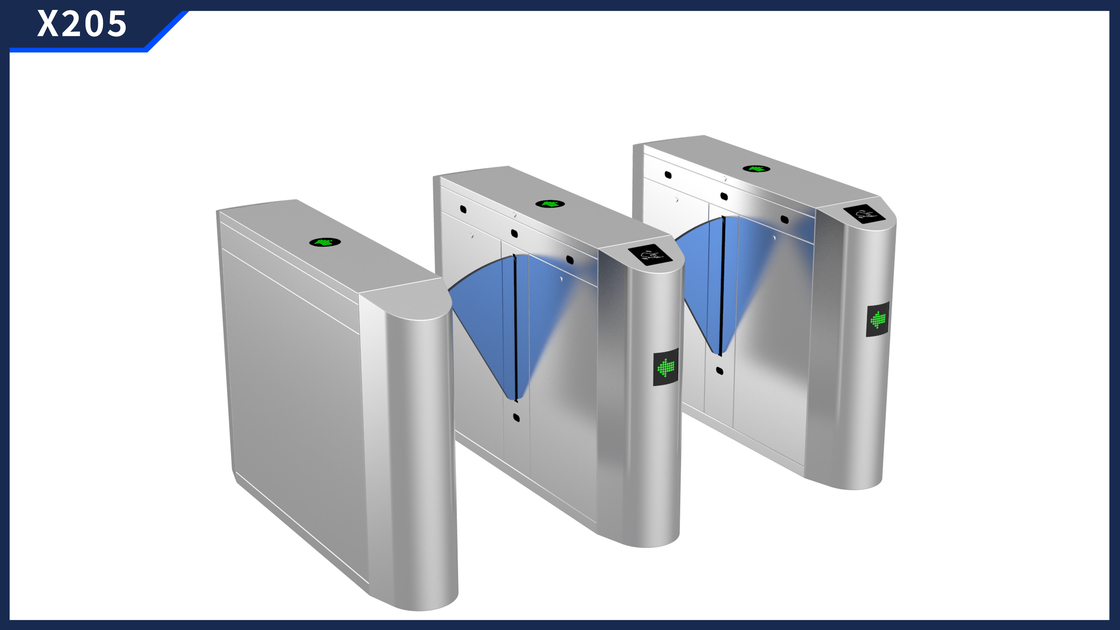

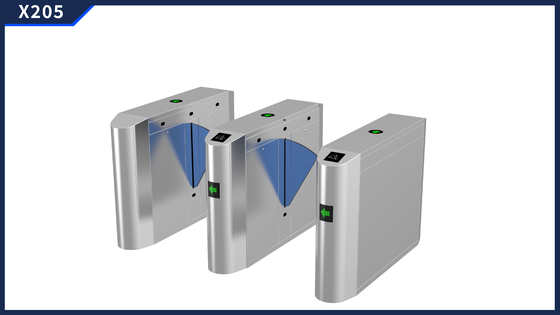

Size Reference

Blue Acrylic SUS304 Stainless Security Flap Barrier Gate RFID IC ID CARD Access Control System 1

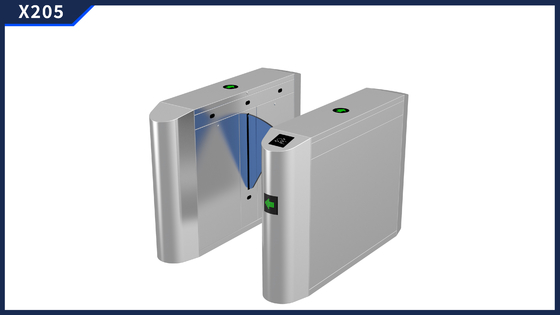

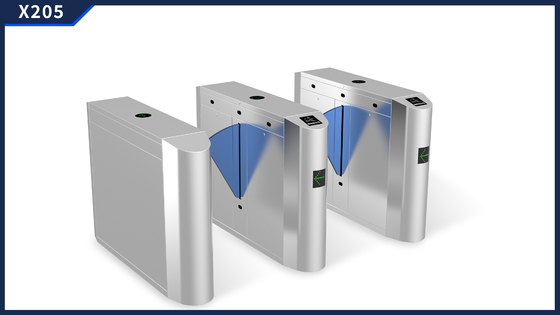

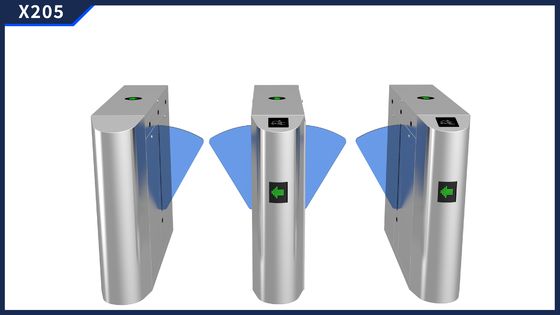

Product cases

Blue Acrylic SUS304 Stainless Security Flap Barrier Gate RFID IC ID CARD Access Control System 2

(installed in UK OFFICE)

Blue Acrylic SUS304 Stainless Security Flap Barrier Gate RFID IC ID CARD Access Control System 3

(installed in school)
