| Brand Name: | Turboo |
| Model Number: | A602 |
| MOQ: | 2 PC |
| Price: | Negotiate |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |

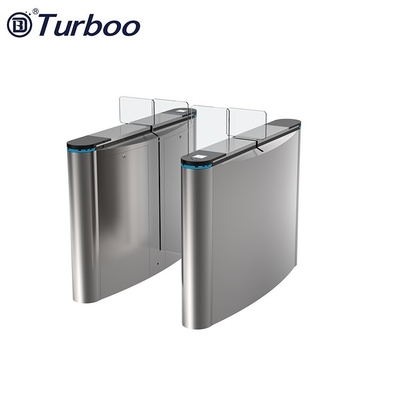

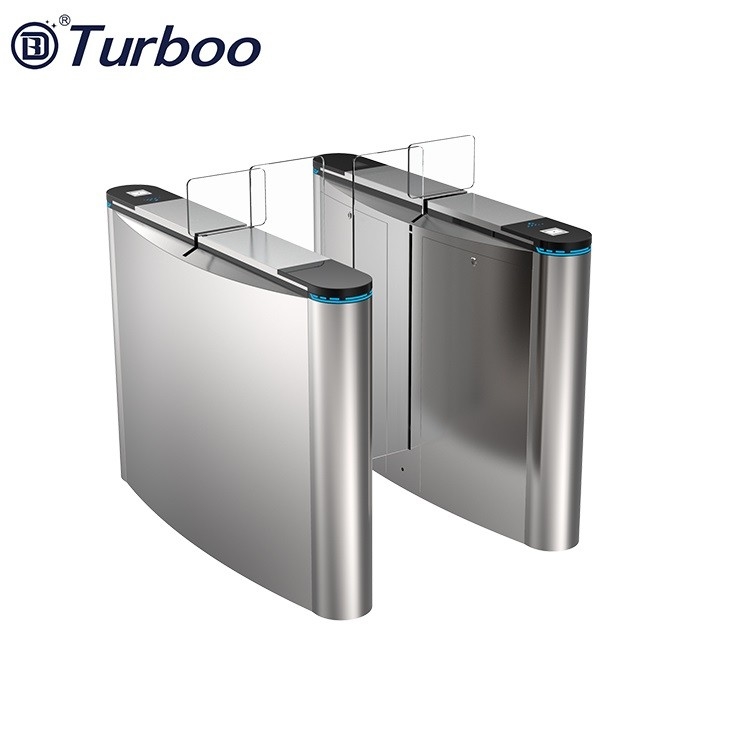

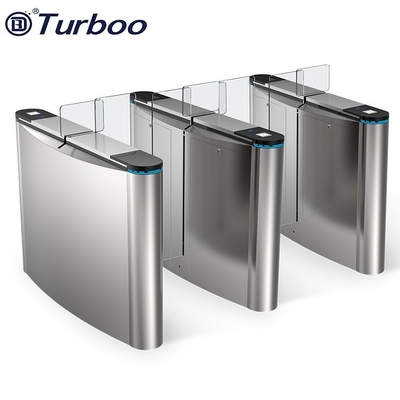

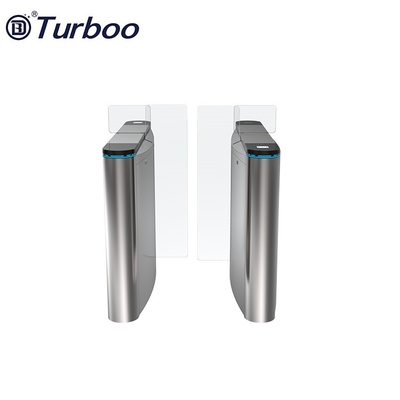

Dry Contact Pedestrian Flap Turnstile Gate Access Control Sliding Gate
Flap Turnstile Gate Features and benifits
• Flap turnstiel gate can be set to delay closing in 1-60s after a valid card-reading
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
Flap Turnstile Gate Application
1.Bus station, school,factory entrance and exit management
2.Tourist attraction Ticketing system
3.Time attendance, access control, consumption management for Building office
4.Special access management system
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
| Model Number: | A602 |
| Product Size: | 1400*300*1020mm |
| Pass Width: | 550mm |
| Thickness: | 1.5mm/1.2mm |
| Top cover Material: | 1.5mm SUS304 |
| Arm Material: | 10mm Tempered Glass |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5 pairs |
| Pass rate: | 35 p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Frequency: | 50-60hz |
| Working Temperature: | -20 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
Video
Video
Video
Video
Video
Video
Video
|
| Brand Name: | Turboo |
| Model Number: | A602 |
| MOQ: | 2 PC |
| Price: | Negotiate |
| Packaging Details: | Wooden Case |
| Payment Terms: | T/T, L/C |
Dry Contact Pedestrian Flap Turnstile Gate Access Control Sliding Gate
Flap Turnstile Gate Features and benifits
• Flap turnstiel gate can be set to delay closing in 1-60s after a valid card-reading
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
Flap Turnstile Gate Application
1.Bus station, school,factory entrance and exit management
2.Tourist attraction Ticketing system
3.Time attendance, access control, consumption management for Building office
4.Special access management system
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
| Model Number: | A602 |
| Product Size: | 1400*300*1020mm |
| Pass Width: | 550mm |
| Thickness: | 1.5mm/1.2mm |
| Top cover Material: | 1.5mm SUS304 |
| Arm Material: | 10mm Tempered Glass |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5 pairs |
| Pass rate: | 35 p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Frequency: | 50-60hz |
| Working Temperature: | -20 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
