| Brand Name: | Turboo |
| Model Number: | D343 |
| MOQ: | 1 PC |
| Price: | negotiate |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, T/T |

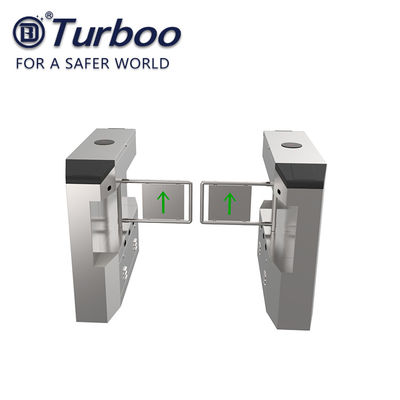

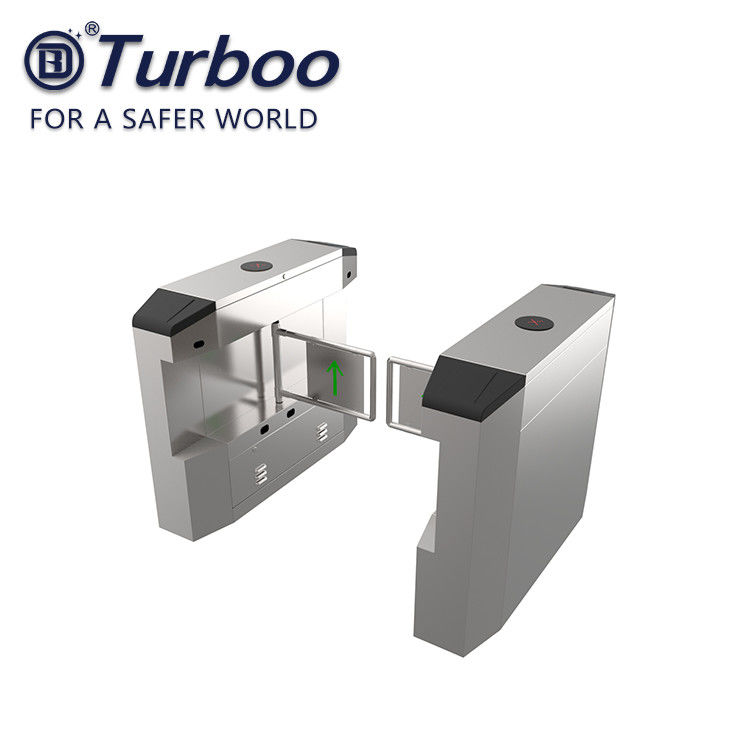

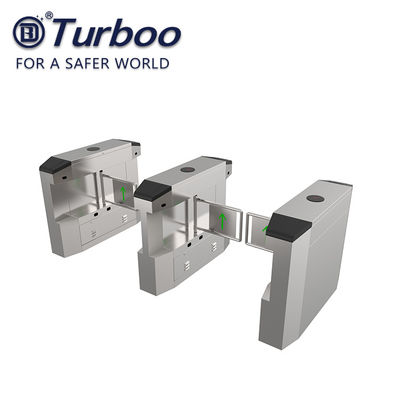

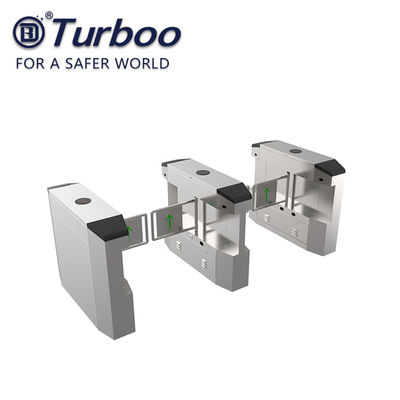

Bi Directional Swing Barrier Gate Supermarket Swing Gate Turnstile
E343 model swing gate is widely used for access control. It is a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. It can be integrated with RFID, face recognition, fingerprint, barcode or QR code access control system, remote control or switch button. It could be use for disable people or bicycle to pass since the passage width could be maximum 1100mm.
Design: Simple and compact design.
Parameters:
| Model Number: | E343 |
| Product Size: | 1200*280*960mm |
| Pass Width: | 1100mm |
| Thickness: | 1.0mm |
| Material: | 1.0mm SUS304 |
| Arm Material: | Stainless Steel |
| Infrared Sensor: | 4 pairs |
| Pass rate: | 35 p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 10,000,000cycles |
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.
