Brand Name:	Turboo
Model Number:	K324
MOQ:	1 PC
Price:	Negotiation
Delivery Time:	10 Working Days
Payment Terms:	L/C, T/T

Model	K324
Size	1500x200x980mm
Material	1.5mm stainless steel
Arm material	10mm Acrylic
Pass Width	600-1300mm
Passage direction	Single directional/Bi-directional
Pass rate	35-40 persons/minute
Operating time	0.2 seconds
Power input	AC100-240V,50/60HZ
Working voltage	24V
Working humidity	30%~95%
Working temperature	-40℃~+70℃
Working environment	Indoor/Outdoor
Communication interface	RS485, Dry contact
Mechanism	Brushless motor+Encoder
Infrared sensor	14 pairs
MCBF	10,000,000 Cycles
Application	Airports, Hotels, Commercial buldings, etc

Tripod Turnstile Gate

Full Height Turnstile Gate

Flap Turnstile Gate

Speed Gate Turnstile

Swing Barrier Gate

Access Control Turnstile Gate

Pedestrian Barrier Gate

Office Security Gates

Waist High Turnstile

Stainless Steel Turnstiles

Electronic Turnstile Gates

Optical Barrier Turnstiles

Train Station Turnstile

Smart Access Control System

Tripod Turnstile Gate

Full Height Turnstile Gate

Flap Turnstile Gate

Speed Gate Turnstile

Swing Barrier Gate

Access Control Turnstile Gate

Pedestrian Barrier Gate

Office Security Gates

Waist High Turnstile

Stainless Steel Turnstiles

Electronic Turnstile Gates

Optical Barrier Turnstiles

Train Station Turnstile

Smart Access Control System

products details

1.5mm Thickness Stainless Steel Speed Turnstile Gate

Stainless Steel Speed Turnstile Gate

1.5mm Thickness Speed Turnstile Gate

0.2S Pedestrian Swing Gate

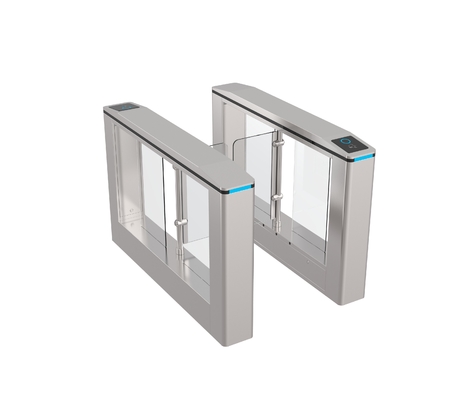

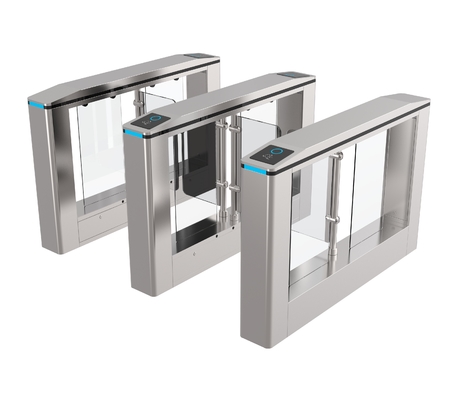

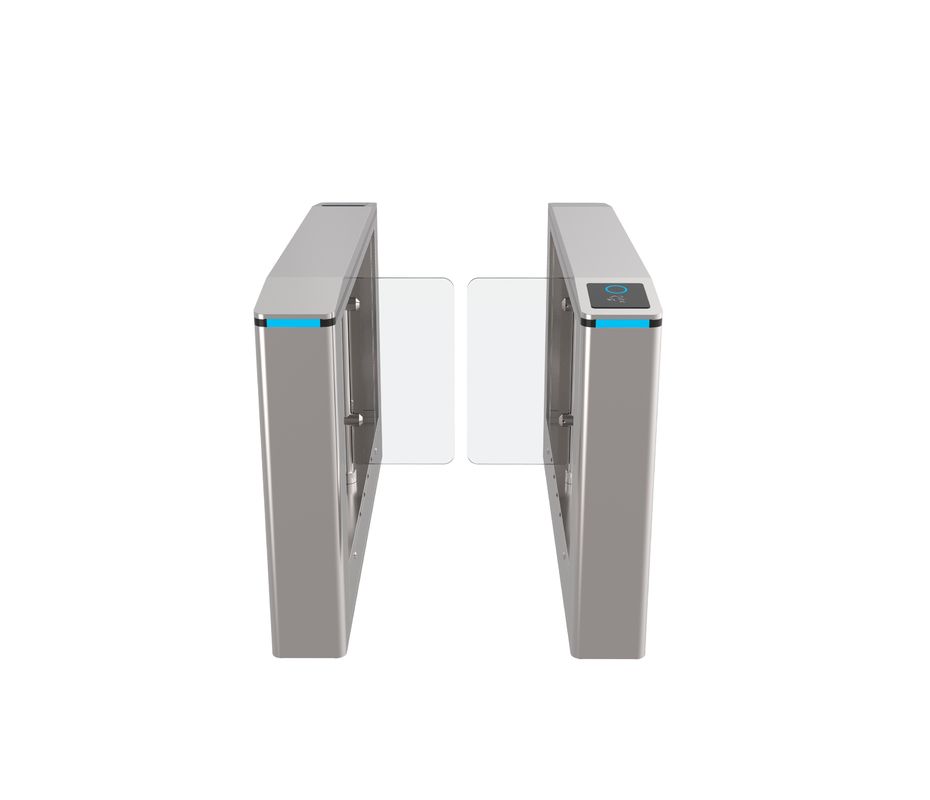

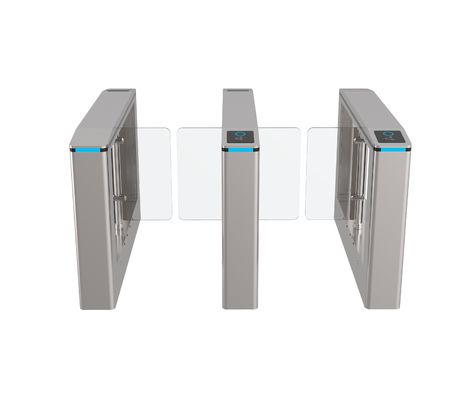

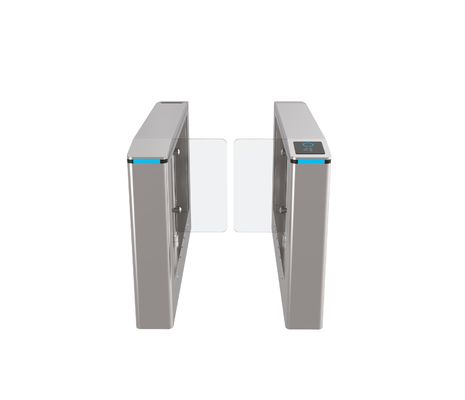

1.5mm Thickness Stainless Steel Speed Turnstile Gate with High Safety and Security System

Product Description

Use IC cards, ID card, bar code as automatic identification system.

A direction indicator to guide pedestrians correct and smooth passage.

Auto reset function, if no passing during identified card-reading time, the system will reset automatically, and passengers are prohibited to pass until their second identified reading.

Support a variety of permissions control equipment, but also with anti - tag anti - clip and other functions.

There is no mechanical collision during the operation of the swing brake, and the noise is relatively small.

The plasticity of appearance form is the strongest in all the brake, the material of the arresting body is rich, the shape of the box body is also diverse, easy to design a very beautiful shape, suitable for the occasion of high requirements for beauty.
