| Brand Name: | Turboo |
| Model Number: | H306 |
| MOQ: | 1 PC |
| Price: | negotiate |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |

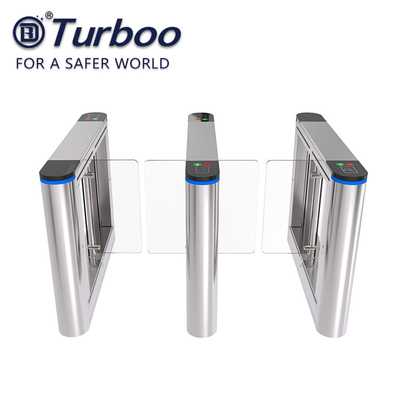

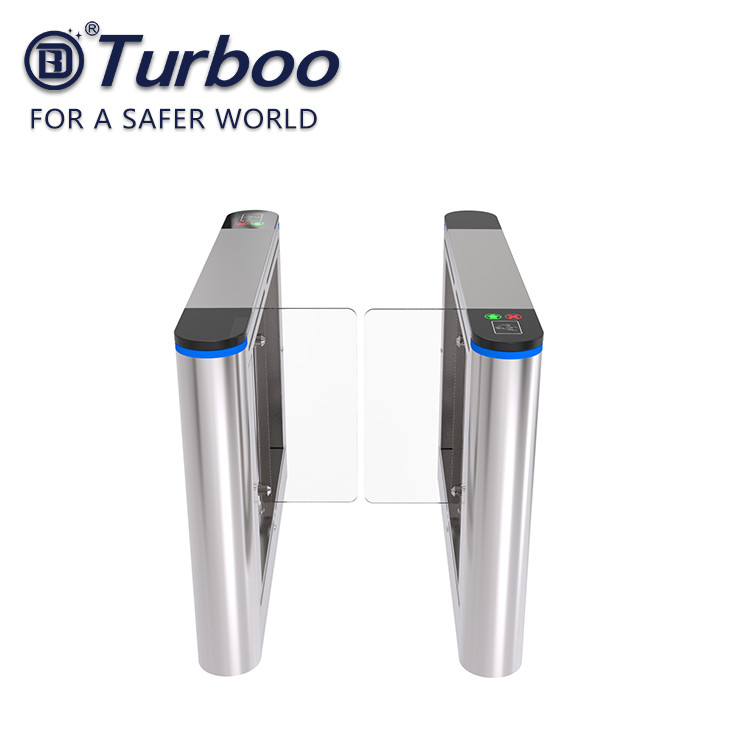

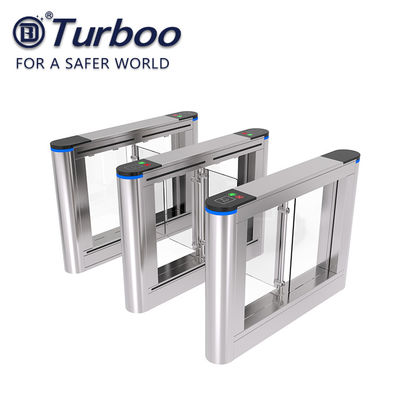

100-240V Pass Width 600-900mm Swing Barrier Gate, Automatic Access Control Pedestrian Barrier Gate, Sensor Barrier
Description:
All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line.
| Model Number: | H306 |
| Product Size: | 1400*185*1020mm |
| Pass Width: | 600-900mm |
| Net Weight: | 65kg |
| Thickness: | 1.2mm |
| Material: | 1.2mm SUS 304 Hailine 400# |
| Top cover Material: | Acrylic+1.5mm SUS304 |
| Filling Panel Material: | 10mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
FEATURES AND BENEFITS:
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access,attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now
