| Brand Name: | Turboo |
| Model Number: | H306 |
| MOQ: | 1 PC |
| Price: | negotiate |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |

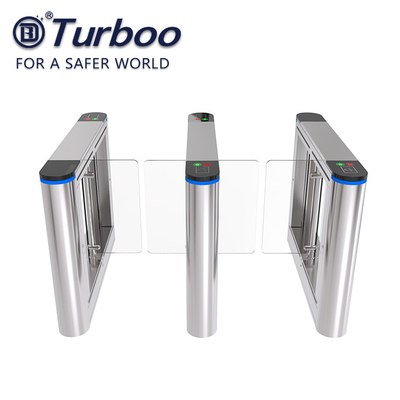

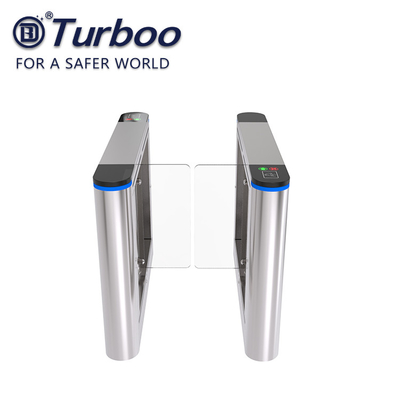

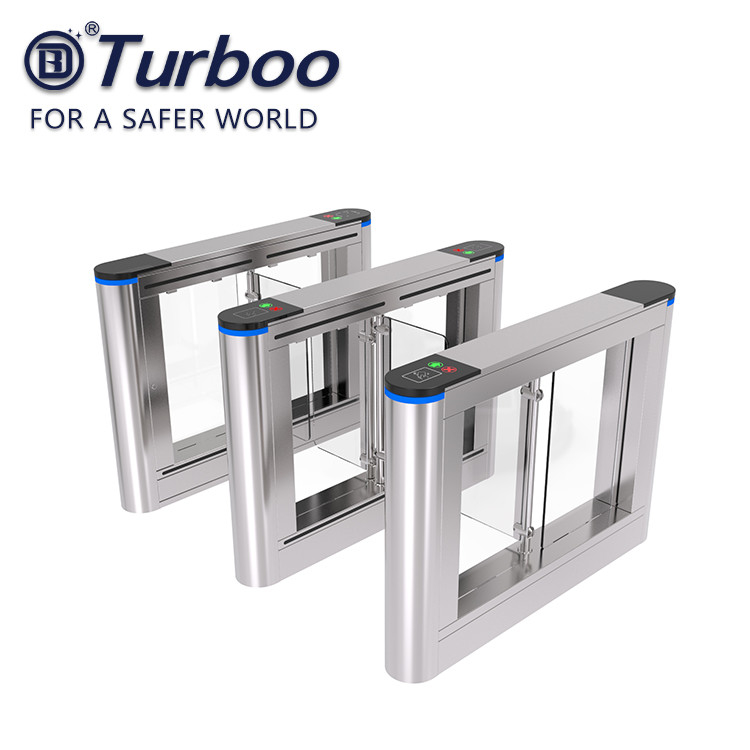

Pass width 600-900mm Automatic Access Control Pedestrian Turnstile , SUS304 Security Swing Barrier Gate 100-240V
Description:
H306 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
| Model Number: | H306 |
| Product Size: | 1400*185*1020mm |
| Pass Width: | 600-900mm |
| Net Weight: | 65kg |
| Thickness: | 1.2mm |
| Material: | SUS 304 Hailine 400# |
| Top cover Material: | Acrylic+1.5mm SUS304 |
| Filling Panel Material: | 10mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
