| Brand Name: | Turboo |
| Model Number: | B302 |
| MOQ: | 2 pcs |
| Price: | negotiate |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T |

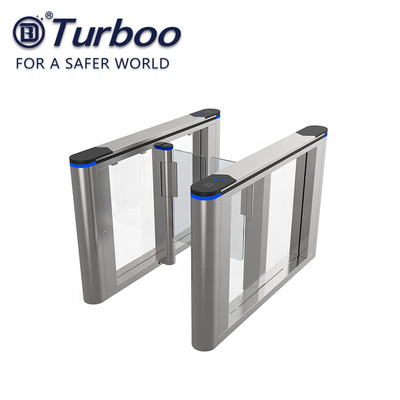

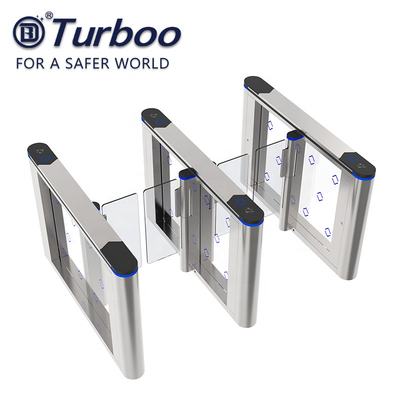

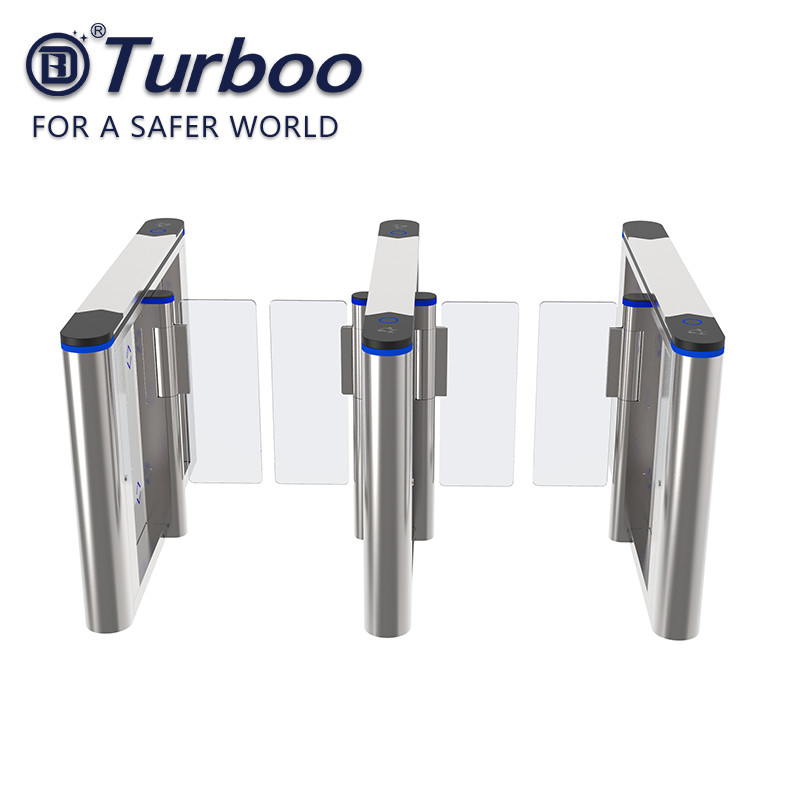

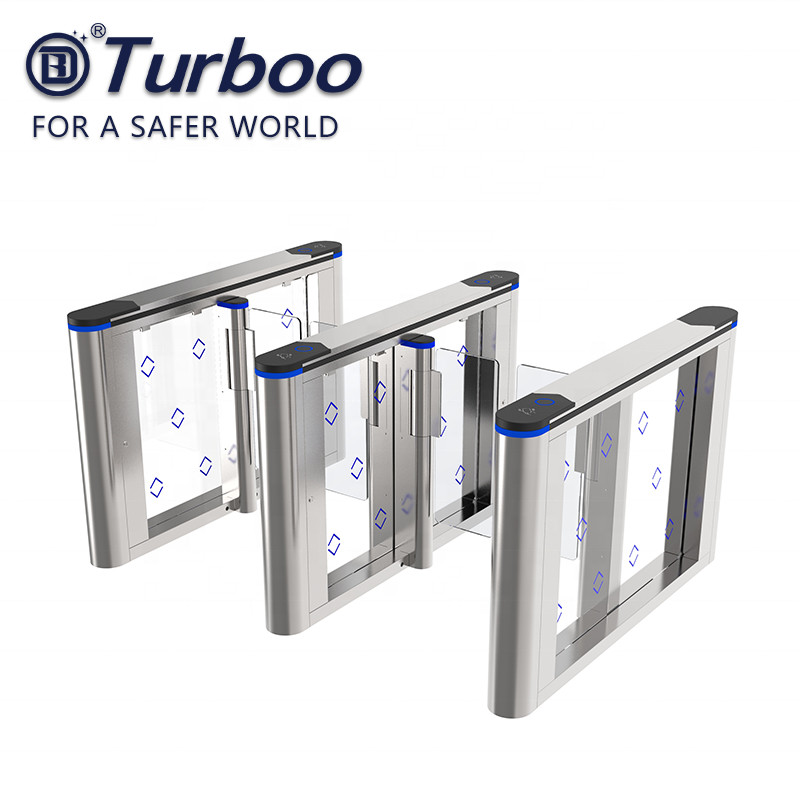

Automatic System Turnstile / Access Control Barrier Gate / SUS304 Speed Gate Turnstile
Description
B302 swing gate which is made of stainless steel and acrylic in a modern style, When the turnstile instantaneously encounter an impulse force that is beyond the safety range, the gates can be pulled away slowly and buffer the impact force towards mechanism and the reverse impact force towards user.It can sensitively detect users' passing status so as to protect users from hitting, meanwhile, prevent illegal intrusion and tail-gating passing.
| Model Number: | B302 |
| Product Size: | 1500*150*980mm |
| Pass Width: | <=900mm |
| Net Weight: | 65kg |
| Thickness: | 1.5mm |
| Material: | SUS304,Polish 400# Snow Line |
| Top cover Material: | Acrylic+Metal plate |
| Filling Panel Material: | 10mm Transparent Acrylic+Light bar |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Servo Motor |
| Infrared Sensor: | 6pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 100w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
Feature:
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now
Video
Video
Video
Video
Video
Video
Video
Video
|
