| Brand Name: | Turboo |
| Model Number: | B3011 |
| MOQ: | 1 PC |
| Price: | Negotiation |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, T/T, |

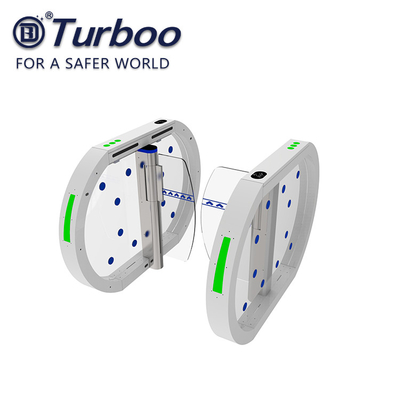

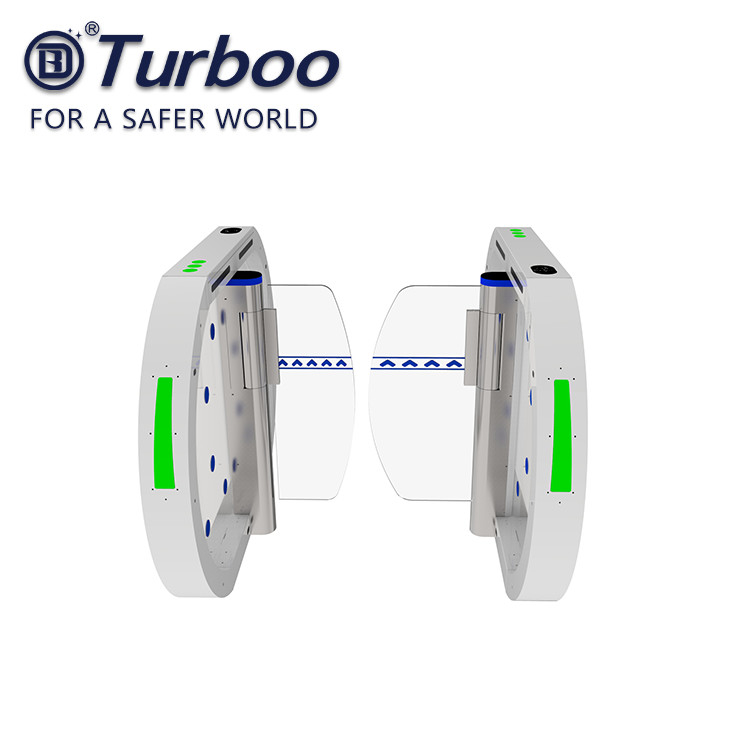

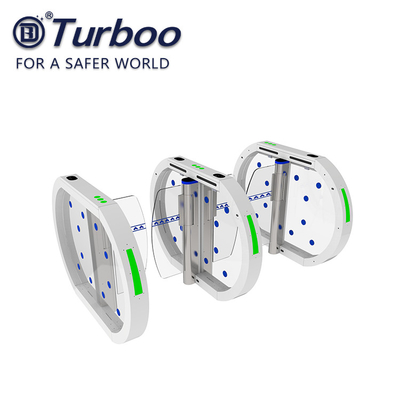

SUS 304 Waist Height Swing Barrier Gate Pedestrian Barrier Gate Office Building Access Control Swing Gate 24V Turnstile
Features and Benefits
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
1. Made from brushed stainless steel which is robust, sigid and sable.
2. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
3. Alarm function, in case of illegal intrusion and reverse intrusion.
4. Infrared sensor to prevent pinch pedestrians.
5. Anti-breakthrough function. The gate is locked automatically until opening signal received.
6. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
7. Green/red LED indicator.
8. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
9. When power off, optical turnstile will open automatically to allow free passage
Product description for Turboo gate B3011: automatic infrared sensor swing turnstile with access control system
| Technical Data | Unit | B3011 |
| Passage width | mm | <600 |
| material | s/s | 304 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 35 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1400X160X960 |
| Net weight including bars | Kg | 55 |
