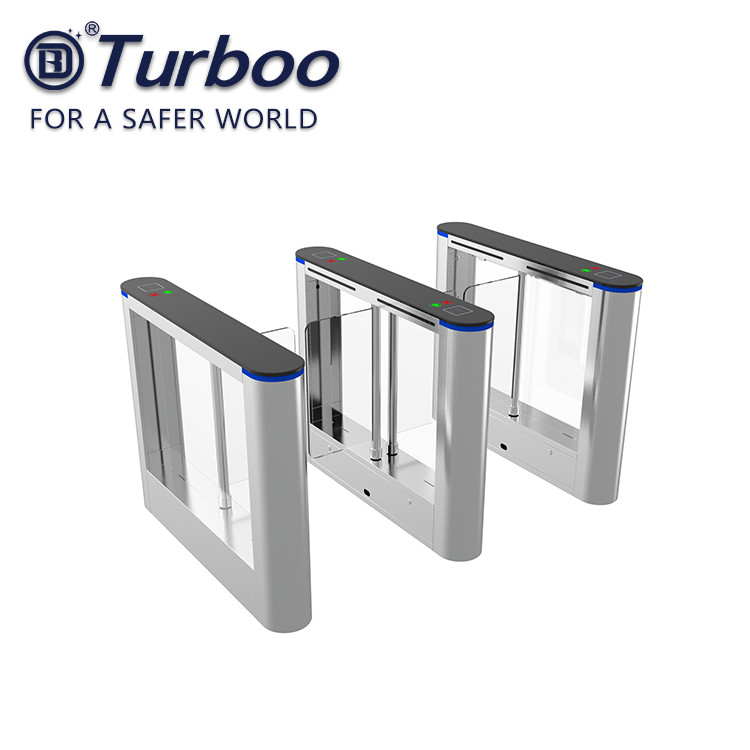

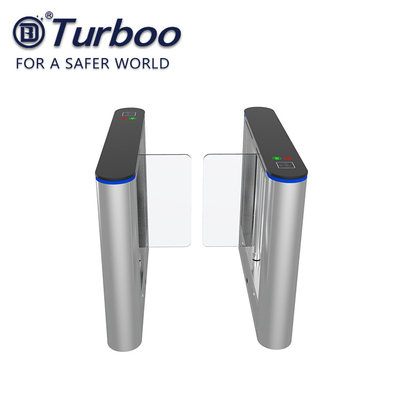

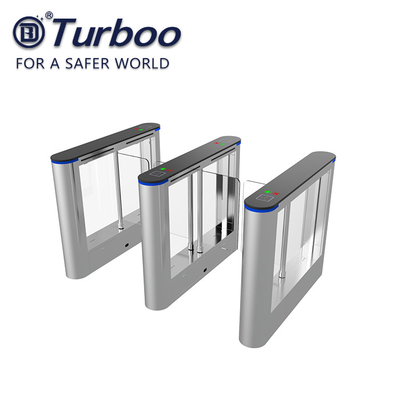

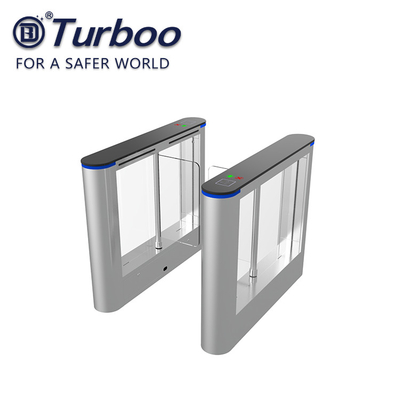

Induction RFID card reader security turnstile with stable speed

Our gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby security management..

Materials

               • Housing:Made in stainless steel AISI 304 o AISI316.

               • Barrier swings-Acrylic, PC, stainless steel frame.

Features and Benefits

1. Electronic Mechanism,more durable and stable.

2. Directional LED Optical Signals:Green Arrow or RED Cross signage.

3. After entering single,if no one pass through in 10 seconds,the barrier will lock automatically.

4, Working Stand-alone or Connect to Internet

5. Always open or close modes,When Fire alarm on,The arcylic will retract automatically.

6. Ensures rapid, efficient & safe access control.

7. Individual installation interface,easy to integrated with Magnetic card,Barcode card,ID card,IC card etc.

8. PhotoElectric Beams installed standard for all models.

9. With the screen and buttons consist of human-machine interface, the users can quickly and easily query and set channel parameters,no longer totally dependent on the host computer or extremely unfriendly pure key board to query and set parameters. This is not necessary functions, but once experience we believed that no one will forget it is great.

• Technology Parameters
  Size	1240×185×980mm
  Unlock time	0.2s
  Pass rate	35p/m
  Pass width	≤600mm
  Input	100V~240V
  Driving voltage	24V
  Environment	-25~+70℃
  Power consumption	35W
  Input	Dry contact
