| Brand Name: | Turboo |
| Model Number: | G538 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, T/T |

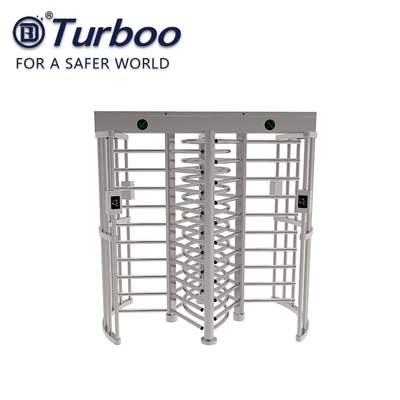

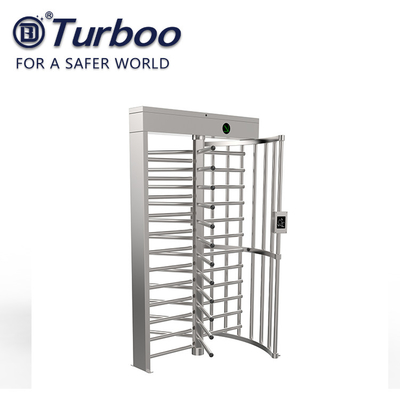

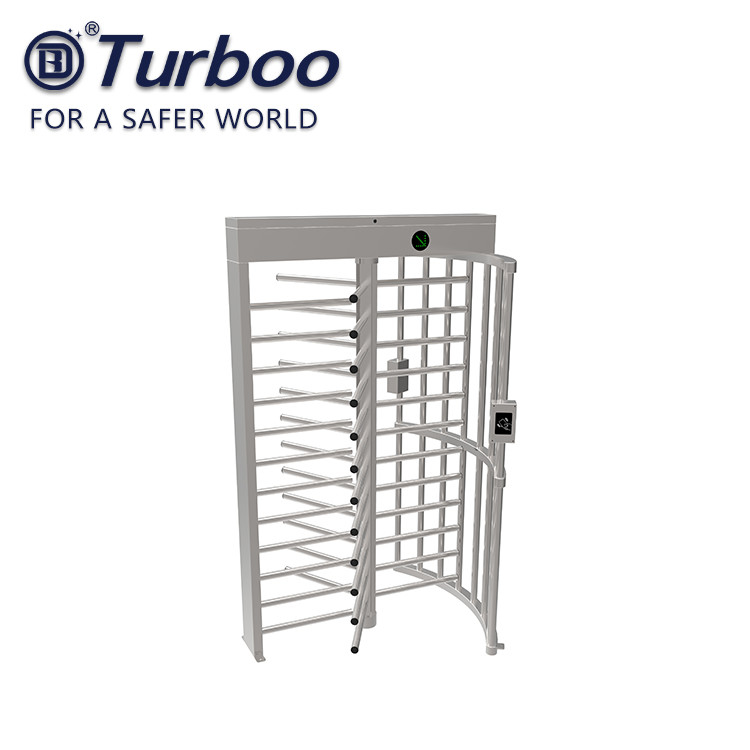

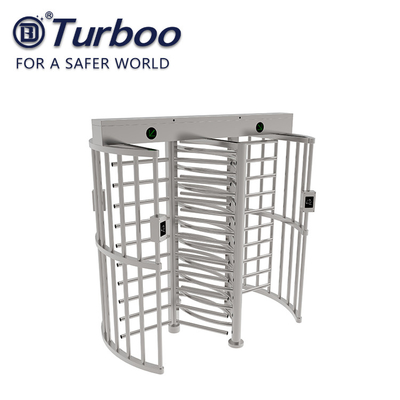

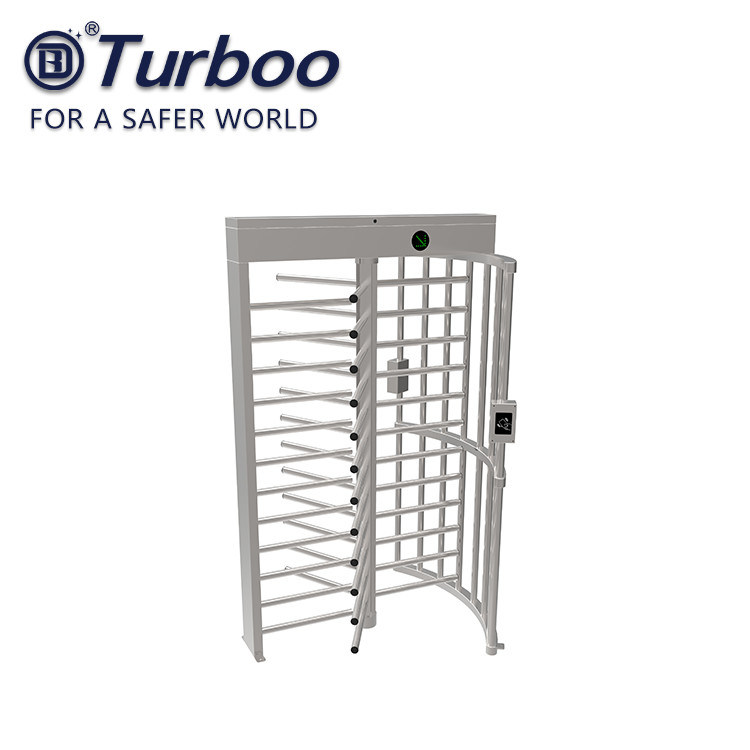

Secure Passage Portals Stainless Steel Full Height manual Turnstile with rfid smart
Features and benefits
1. Fault detection,user-friendly maintenance and use
2. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board.
3. Free movement in both directions without power, power lock function automatically restore on power in case of emergency.
4. When a valid card is read, pedestrian just gently push the turnstile.Turnstile can be automatically reset.Two-way channel, three doors are always closed state, the revolving door rotated120 degrees (or 90 degrees each time)
5. Uses a unique rotating system, the gates locked in the zero position, unlock more accurate and reliable.
6. A unified, standard external electrical interface, can be articulated with a variety of equipment to read and write, and easy system integration, and remote control and management by managing computer
7. With automatic reset function.When a valid card is read, the passage of time did not pass, the system will automatically cancel the access by the access permissions.And passage time limit set by the manager.
8. Smooth operation of the whole system, noiseless.
Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer
Product Description
| Technical Data | Unit | G538 |
| Passage width | mm | <650 |
| Throughput rate | p/m | 30 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1400X1200X2310 |
| Net weight including bars | Kg | 110 |
Video
Video
Video
Video
Video
Video
|
